A11, ø 80 x 80 mm, with steel plate according to EN 81-20/50 (lift directive 2014/33/EU)
About the product

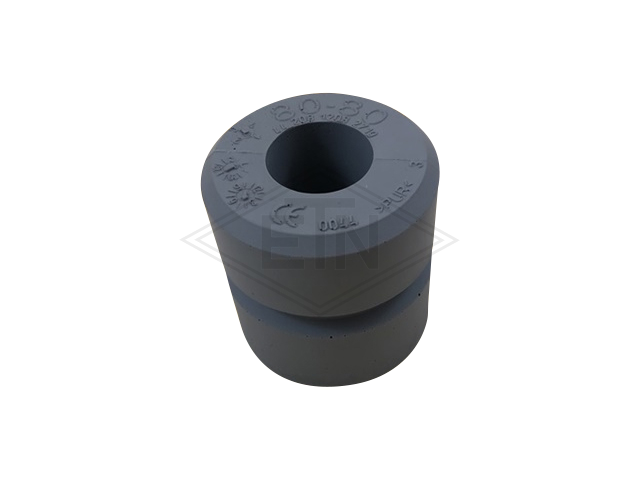

Lift buffer A11, ø 80 x 80 mm, with steel plate according to EN 81-20/50 (lift directive 2014/33/EU)
Technical Data
| Height: | 80 mm |
| Identical in construction to the manufacturer: | Elastogran/BASF |
| Outer diameter: | 80 mm |
| Tested nominal speed: | 0,63 m/s, 0,80 m/s, 1,00 m/s |
| Type of fastening: | With round steel plate |
min/max Load ranges (Kg) at rated speed
| 0.63 m/s | 0.80 m/s | 1.00 m/s |
| 140 | 200 | 200 |
| 1.000 | 500 | 500 |
